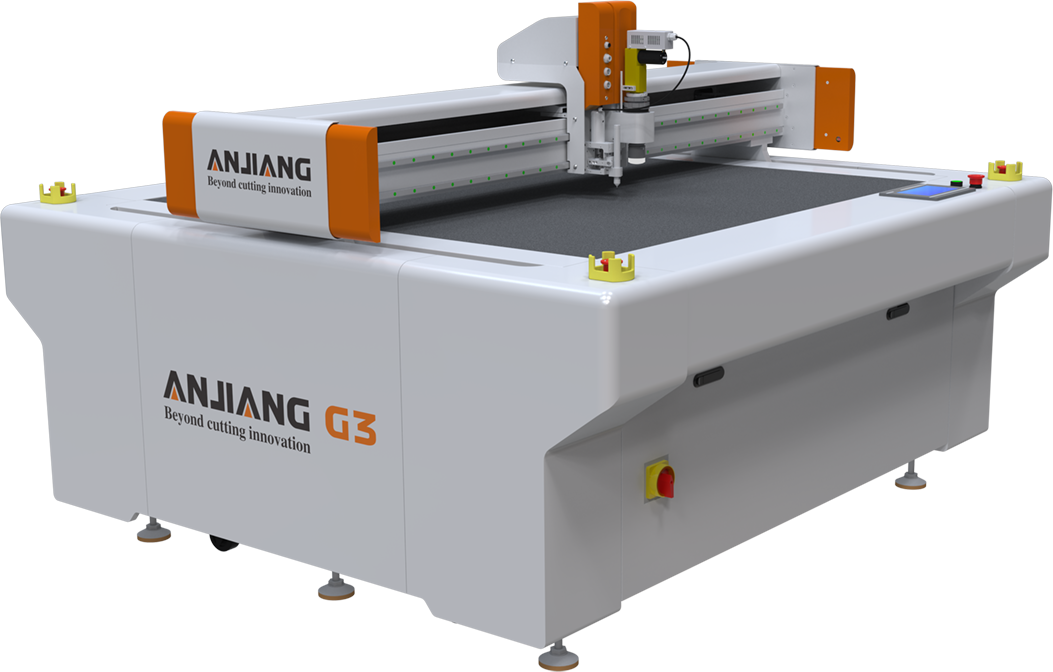

G3-1113

Machine size：2145*1965*1259mm

Working area：1100X1300mm

Max.speed：1800mm/s

Max.thickness：50mm

Repeat accuracy：±0.05mm

Machine weight：800kg

Work environment：

Temperature-10°C-40°C Humidness20-80%RH

Drive mode：Rack/Belt+linear guide rail

Motion specification：Pulse type servo drive system

Table Mode：Fixed mesa

File Format：PLT、DXF、NC

Transfer mode：Ethernet cable

Material fixation method：Vacuum adsorption

Vacuum specification：5.5KW

Electricity standards：380V/220V AC 50Hz/60Hz
